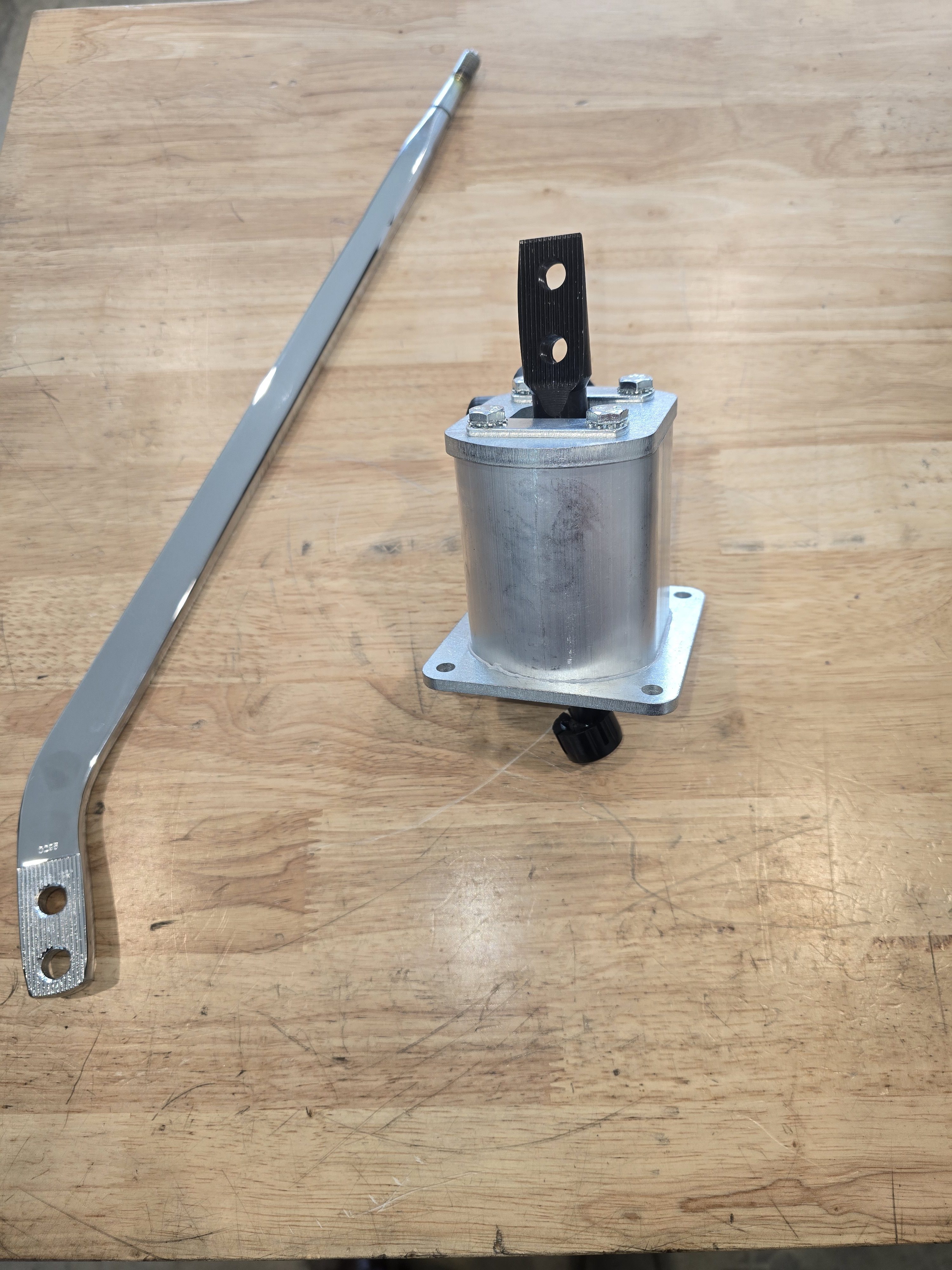

CORE Shifter for NV5600

Description

• Replaces Mopar OE shifter # 05012139AA & 05086622AA aka 25683
• 21″ tall from base flange to top of knob; 23% throw reduction; ~ stock knob height
  • IF YOU HAVE A 2″+ BODY LIFT (aftermarket frame spacers): use an extension bracket to elevate stick

Kit includes chrome stick #0085 on an offset bracket, classic knob, base assembly w/ lower pivot cup, mounting hardware, dust cover boot, and installation instructions. The base is built by Core Shifters using proven components inside a custom housing:

• High-strength billet steel gear selector stub
• Hardened steel cross-pin & stainless steel fulcrum pivot ring
• Self-centering cross-gate bias springs with heat treated spring seats
• Glass-reinforced polyamide fulcrum socket with steel wear clips
• Rubber oil control seal with steel retaining ring
• Extruded aluminum housing with Spirolox steel support ring
• Laser-cut steel lid & baseplate
